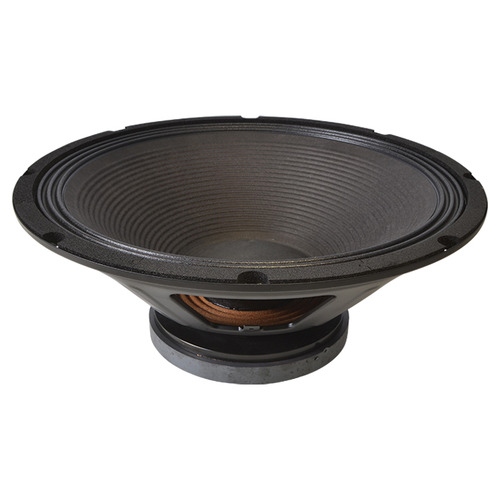

18" Speaker Driver 1000 Watt 8 Ohm Bass Woofer

Price checked 2025-03-12 · Image: merchant feed

Sub Bass 18" Woofer. For Repairs & New Speaker Projects. 1000 watts. 8 OhmDriver Size: 18" Power AES: 500W Watts Continuous Programme: 1000 Watts Impedance: 8 Ohm Frequency Range: 34-1500kHz... nsitivity: 94.2dB Bolt Circle Diameter: 446mm Cutout Diameter: 426mm Dimensions: 460 x 190m Weight: 9.9Kg Thiele & Small Parameters: Resonance Frequency (Fs): 34hz Mechanical Factor (Qms): 3.018 Electrical Factor (Qes): 0.523 Total Factor (Qts): 0.446 BL Factor (BL): 26.9T.m Effective Moving Mass (Mms): 267gr Compliance (Cms): 77.6 u M/N Equivalent Cas Air Load (Vas): 211L Effective Piston Area (Sd): 13

Designed for both repairs and new speaker projects- this massive 18" Lyonforge is suitable for any large sub-bass system. It handles up to 1000 watts of power and has an 8 Ohm impedance- providing durable and powerful sound. Tailored for sub-bass cabinets and with a frequency response from 34 to 1500Hz- the speaker will deliver excellent low-frequency performance and fill any space with deep- resonant bass. The woofer is built with a strong frame and a large 220mm magnet- ensuring it lasts even under tough conditions. Ideal for upgrading an existing system or starting a new one- the Lyonforge LFS18-1000 18" Woofer is a solid choice. Check the specification tab for complete Thiele Small design parameters.. speaker driver-speaker chassis-18" speaker driver-full range speaker driver-full range speaker chassis
