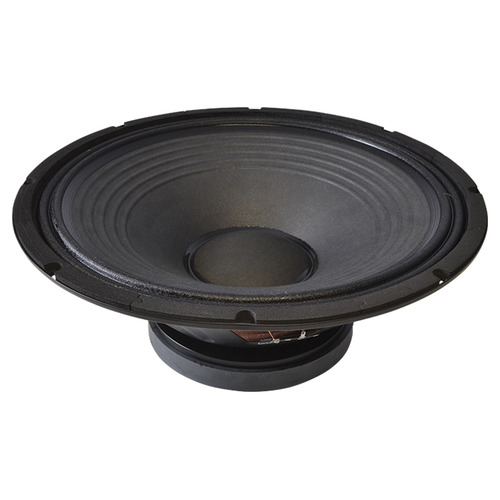

15" Speaker Driver 800 Watt 8 Ohm Bass Woofer
Price checked 2026-08-18 · Image: merchant feed
£59.00live price — same price to you
15" Bass Speaker Driver. For Speaker Repairs. New Speaker Projects. 1000 watts. 8 OhmDriver Size: 15" Power AES: 400W Watts Continuous Programme: 800 Watts Impedance: 8 Ohm Frequency Range: ... 5100kHz Sensitivity: 99.2dB Bolt Circle Diameter: 377mm Cut-out Diameter: 361mm Dimensions: 385 x 155mm Weight: 6.3Kg Thiele & Small Parameters: Resonance Frequency (Fs): 53hz Mechanical Factor (Qms): 1.68 Electrical Factor (Qes): 0.41 Total Factor (Qts): 0.33 BL Factor (BL): 19.3T.m Effective Moving Mass (Mms): 76.9gr Compliance (Cms): 116.6 u M/N Equivalent Cas Air Load (Vas): 148L Effective Piston Ar
This Lyonforge Woofer is designed for top performance in both speaker repairs and new projects. It can handle 800 watts of power and has an 8 Ohm impedance- providing deep and powerful bass. It's ideal for bass cabinets and has a frequency response that covers the whole of the low frequency spectrum. The woofer features a sturdy frame and a large 190mm magnet- making it durable and stable for heavy use in big systems. Suitable for upgrading existing systems or for new speaker projects- this 15" Lyonforge Woofer is a solid choice. Thiele Small parameters are also provided for advanced speaker design needs.. speaker driver-speaker chassis-15" speaker driver-full range speaker driver-full range speaker chassis
