Terralec · Speaker Parts · LYONFORGE

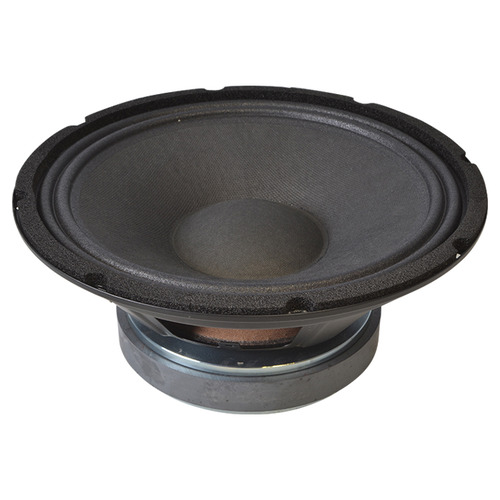

10" Speaker Driver 250 Watt 8 Ohm Full Range Chassis Speaker
Price checked 2025-03-12 · Image: merchant feed
£38.95live price — same price to you
10" Woofer/Full range Driver. For Speaker Cabinet Repair. New Speaker Projects. 200 watts 8 OhmDriver Size: 10" Power AES: 150 Watts Continuous Programme: 250 Watts Impedance: 8 Ohm Frequenc... ange: 37-3000kHz Sensitivity: 90.8dB Bolt Circle Diameter: 250mm Cut-out Diameter: 234mm Dimensions: 258 x 105mm Weight: 3.4Kg Thiele & Small Parameters: Resonance Frequency (Fs): 37hz Mechanical Factor (Qms): 1.918 Electrical Factor (Qes): 0.367 Total Factor (Qts): 0.308 BL Factor (BL): 14.3T.m Effective Moving Mass (Mms): 53gr Compliance (Cms): 337 u M/N Equivalent Cas Air Load (Vas): 55L Effective Pi
This Lyonforge 10" woofer is designed for both speaker repair and new projects. It handles up to 250 watts of power and has an 8 Ohm impedance- ensuring clear and powerful sound. It features a large 156mm magnet that provides strong bass response and high efficiency across all frequencies. Suitable for replacing PA speaker components or for use in custom speaker installations- the Lyonforge LFS10-200 10" Woofer meets high quality and performance standards. Consider it for upgrading your sound system to achieve better clarity and power.. speaker driver-speaker chassis-10" speaker driver-full range speaker driver-full range speaker chassis
✓ Why it wins
- Live checked price (£38.95)
- Spec checked against the live merchant feed
- Spec checked against feed (Speaker Parts)
✕ Check before buying
- Confirm delivery & assembly on merchant page
- Compare 3 alternatives below
