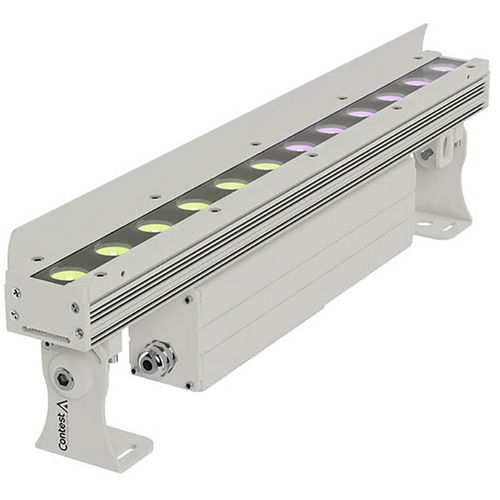

LED Batten Coloured RGBL LEDs for Exterior Use IP66 Rated in 484mm

Price checked 2026-11-04 · Image: merchant feed

12 x 4W or 24 x 4W COB LED Versions. RGBL LEDs. LED Split Over 2 Zones. Symmetrical Lenses 12ø Aperture. DMX/Power Connections via Hybrid In & Out Cables with IP67 Plugs.

External VRDM Control Box for RDM Parameterization. Compatible with RDM Consoles on Certain Parameters. DMX Control Protocol on 2 to 20 Channels Depending on the Selected Mode. Selectable Refresh Rate from 900Hz to 3600Hz. Convection Cooled. IP66 Protection Dust & Splash Proof from all DirectionsVBAR50RGBL Power Supply: 100-240V- 50/60Hz Power Consumption: 52W LED: 12 x 4W RGBL Beam Angle: 12 Degrees IP Rating: IP66 DMX Channels: 2- 4- 5- 6- 8- 10- 12- 16- 18 or 20 Dimensions: 484 x 53 x 117mm Weight: 3.2Kg VBAR100RGBL Power Supply: 100-240V- 50/60Hz Power Consumption: 102W LED: 24 x 4W Beam Angle: 12 Degrees IP Rating: IP66 DMX Channels: 2- 4- 5- 6- 8- 10- 12- 16- 18 or 20 Dimensions: 997 x 53 x 117mm Weight: 5.7Kg. This outdoor architectural LED batten is perfect for demanding indoor or outdoor lighting applications. Its powerful COB LEDs deliver exceptional brightness with 12 x 4W or 24 x 4W output versions- with LEDs split into 2 zones. The 4 in 1 RGBL LED enable a selection of colour outputs to achieve the desired aesthetic effect when coupled with the symmetrical 12 degree lenses. The batten utilizes hybrid cables with IP67 rated plugs for secure and reliable signal and power transmission.
