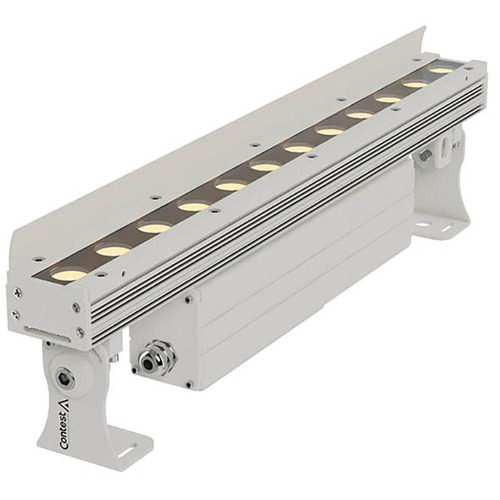

LED Batten Cool & Warm White LEDs for Exterior Use IP66 Rated 484mm

Price checked 2026-11-04 · Image: merchant feed

12 x 4W or 24 x 4W COB LED Versions. White Range 2700-6800K. Asymmetrical Lenses with 15ø x 30ø Aperture. DMX/Power Connections via Hybrid In & Out Cables with IP67 Plugs.

External VRDM Control Box for RDM Parameterization. Compatible with RDM Consoles on Certain Parameters. DMX Control Protocol on 2 to 4 Channels Depending on the Selected Mode. Selectable Refresh Rate from 900Hz to 3600Hz. Convection Cooled. IP66 Protection Dust & Splash Proof from all DirectionsVBAR50DW Power Supply: 100-240V- 50/60Hz Power Consumption: 50W LED: 12 x 4W Beam Angle: 15 x 30 Degrees IP Rating: IP66 DMX Channels: 2- 3- or 4 Dimensions: 484 x 53 x 117mm Weight: 3.2Kg VBAR100DW Power Supply: 100-240V- 50/60Hz Power Consumption: 102W LED: 24 x 4W Beam Angle: 15 x 30 Degrees IP Rating: IP66 DMX Channels: 2- 4- 5- 6 or 8 Dimensions: 997 x 53 x 117mm Weight: 5.7Kg. This professional outdoor LED batten is perfect for demanding outdoor and indoor lighting applications. Its powerful COB LEDs deliver exceptional brightness with 12 x 4W or 24 x 4W output versions. The wide colour temperature range (2700K-6300K) enables selection of warm white or cool white light to achieve the desired aesthetic effect when coupled with the symmetrical 15 x 30 degree lenses. The batten utilizes hybrid cables with IP67 rated plugs for secure and reliable signal and power transmission.
