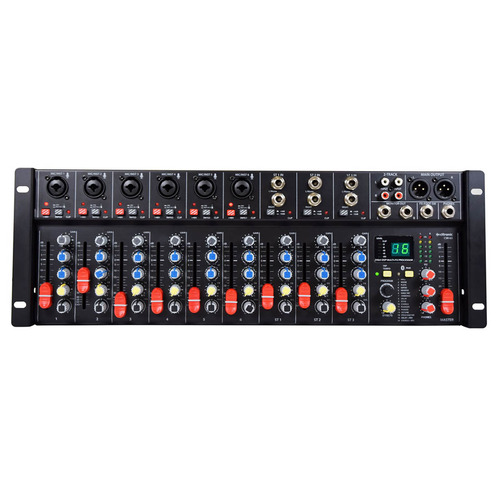

Rack Mountable 9 Channel Mixer with DSP and Bluetooth

Price checked 2026-11-04 · Image: merchant feed

4U Rack-Mountable with Adjustable Depth. 16-Preset 24bit DSP Effects Section. 60mm Level Fader for each Channel. Internal Bluetooth Receiver. Individually Switchable +48V Phantom PowerPower Supply: 5Vdc- 2A Power Consumption: 10W Mic Inputs: 6 (Mono Mic/Line) Line Inputs: 3 (Mono Jacks) Phantom Power: +48V (XLR Inputs Only) Dimensions: 482 x 160 x 90mm Weight: 2.74Kg.

The Citronic CSR-63 rack-mountable mixing console is built to offer full-size mixer features in a slim profile format. Equipped with 6 mic/line channels and 3 stereo line channels- each has individual Gain- 2-band EQ- FX and PAN control with a 60mm Level fader. Mono channels also have individually switchable +48V phantom power and can accept a mic- line or instrument input. For live performers- a DSP effects section has 16 editable presets and can be activated remotely via a foot switch if needed. Balanced main outputs are joined by 2-track in and out- monitor out- headphones out and a Bluetooth receiver for wireless music playback. Uniquely designed end panels enable installation into a 19" rack or serve as feet for free-standing operation. When rack-mounted- the CSR-63 occupies a little less than 4U height- allowing space to feed cables through the rear of the rack frame from the top-mounted connectors. The end panels also have adjustable depth fixing- enabling controls to stand proud of the rack for easy access or deeper behind the frame for protection. Unlike most rack mixers- tis mixer has a shallow housing depth to allow back-to-back mounting with other equipment in racks with rear mounting strips. Overall- the CSR-63 can find its home in numerous different audio setups and provides a problem-solver for both installed and mobile PA systems. audio mixer-rackmountable audio mixer-mixing desk-19" mixer
