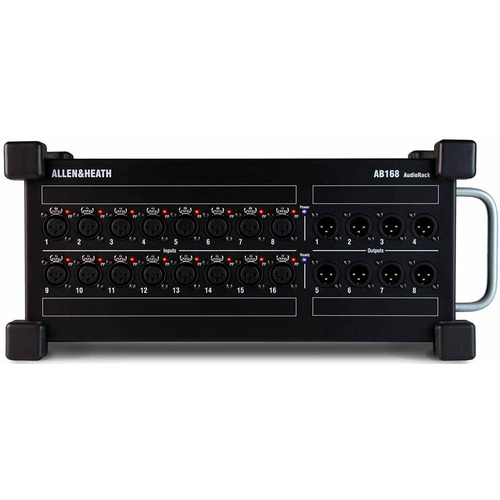

AB168 Digital Stage Snake 16 Inputs 8 Outputs Floor Standing for Allen & Heath QU Mixers

Price checked 2026-04-14 · Image: merchant feed

Portable AudioRack. 16 XLR Line Inputs & 8 XLR Outputs. 16 Mic Preamps with Phantom Power Indicators. Runs on Allen & Heath's Proprietary dSNAKE Protocol. Rugged Design- Including Rubber Bumpers. ... be Placed on the Stage Floor During Performances.

Lightweight With Sturdy Carry HandlePower Supply: 100-240Vac- 50/60Hz Inputs: 16 (XLR) Outputs: 8 (XLR) Dimensions: 411 x 182 x 189mm Weight: 4.8Kg. The Allen & Heath AB168 expander replaces traditional analogue stage snakes- allowing for the convenient use of a single Cat cable up to 100m away. With 16 microphone preamps offering +60dB of gain- Phantom Power indicators- and -20dB pads for line-level sources- it ensures versatile connectivity. Featuring 8 XLR line outs- balanced and relay-protected- the expander also boasts an expander port for daisy-chaining with compatible expanders or linking to ME personal mixers. Its plug-and-play functionality requires no configuration. Built for the rigours of the stage- the AB168 is designed with ruggedness in mind- featuring hard-wearing rubber bumpers and a lightweight- portable design at just 4.8kg.
