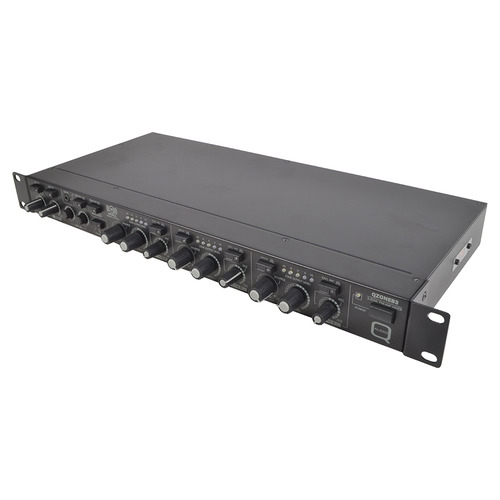

3 Zone Installation Mixer with 5 Stereo Inputs + 2 Mic Inputs

Price checked 2026-11-04 · Image: merchant feed

3 Zone Outputs. 5 Line Inputs. 2 Microphone Inputs. Zone Routable Inputs. 19" 1U Rack Mountable. 12V Phantom Power Available via Internal Jumper for Condenser Microphones.

Front 3.5mm Stereo Jack Route-able to Zones. Rear-Panel Balanced Stereo Input (FOH input) Routable to Zones. Two Stereo Output Zones and One Mono Output Zone . Rear Adjustable EQ for each Zone Output. Level Control for each Zone Switchable Between Front-Panel & Optional Remote Control. Balanced TRS and Phoenix Output Connectors for each ZoneUnit Size: 1U Dimensions: 483 x 45 x 184 Weight: 2.2Kg. The Q Audio QZONE83 is a highly versatile 3-zone mixer- designed for installations in bars- restaurants- gyms- schools- and similar environments. This compact 1U- 19" rack-mountable mixer provides a robust solution for professional audio setups- ensuring seamless integration and high-quality sound. The QZONE83 offers five stereo inputs; four of these have rear-panel gain controls and can be routed to output zones A- B- or C. The fifth input is dedicated to Zone C- delivering a focused audio output.
