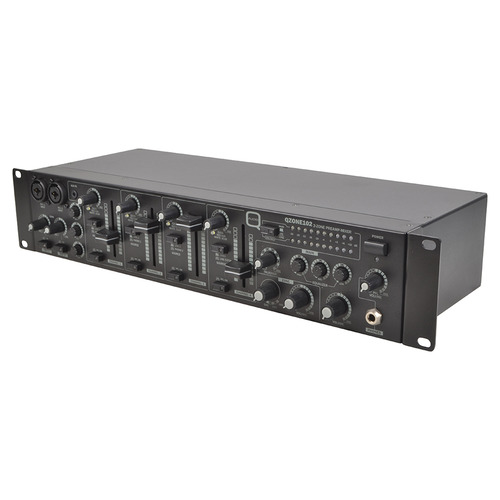

2 Zone Installation Mixer with 4 Dual Stereo Channels + 2 Mic Inputs

Price checked 2026-11-04 · Image: merchant feed

2 Zone Installation Mixer. 4 Line Inputs RCA and 2 Mic Inputs. 2U 19" Rack Mountable. Tone Controls. Emergency Input & Output Mute. Adjustable Auto Talk-Over for Automatic Music Level Reduction.

Front Panel 3.5mm Stereo Jack Input. Balanced XLR and Phoenix Output Connectors . 100Hz High Pass Filter for Background Speakers. Phantom PowerUnit Size: 2U Dimensions: 483 x 88 x 183.5 Weight: 2.8Kg. The Q Audio QZONE102 is a purpose-built mixer- ideal for small installations in venues such as bars- restaurants- and gyms. It is especially effective in setups where two zones require either distinct music sources or the same audio at different volume levels. This mixer offers four main input channels- compatible with both line and phono sources. Channel 1 includes a front-panel 3.5mm auxiliary jack for convenient connection to devices like iPods or smartphones. Channel 4 features a Front-of-House (FOH) input- allowing external sound sources- such as a DJ or band- to connect via balanced stereo jacks-an invaluable option for integrating live performances with background music. The front panel also provides two microphone inputs- with the choice of XLR or jack connectors- paralleled by two additional mic inputs on the rear.
