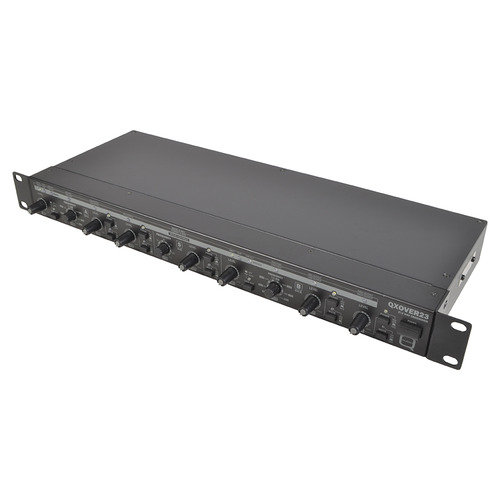

Electronic Crossover - Stereo 2-Way/Mono 3-Way Active

Price checked 2026-11-04 · Image: merchant feed

Stereo 2 Way/Mono 3 Way Active Crossover. Crossover Frequencies Adjustable in Two Switchable Ranges: 44 to 930Hz & 440Hz to 9.3kHz. Mono Subwoofer Output with Independent Crossover Frequency Control.

Individual Output Level Controls for all Bands. Individual Output Mute Switches for all Bands. Individual Phase Reverse Switches for all Bands. Switchable 25Hz Low Cut Filter in each Input. Balanced XLR Connectors for all Inputs & Outputs. All Switches with LED Status Indicator. 1U 19" Rack Mountable Active Crossover Power Supply: 115-230Vac- 50/60Hz Frequency Range: 20Hz-20kHz Unit Size: 1U Dimensions: 483 x 44.5 x 162mm Weight: 2.3Kg. Using an active crossover in a sound system delivers superior audio quality compared to passive alternatives- as it separates bass from high frequencies- significantly enhancing overall system performance. The Q Audio QXOVER23 is a versatile stereo 2-way or mono 3-way active crossover- positioned between the mixer and amplifier- typically connected by balanced line-level cables. Incoming signals are divided into precise frequency bands using Linkwitz-Riley filters- offering excellent speaker driver protection with their steep 24dB/octave slope.
