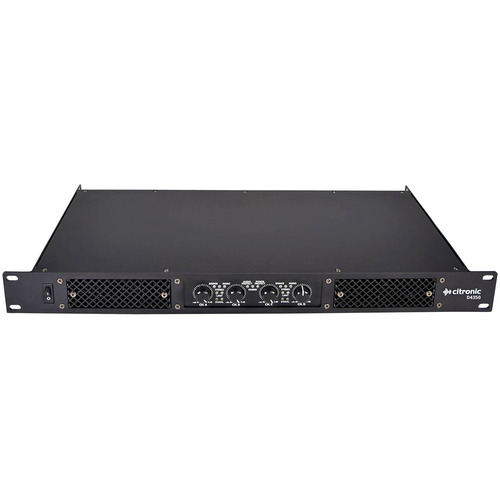

4 Channel Digital Amplifier 1400W

Price checked 2026-07-15 · Image: merchant feed

Switchable Bridge or Parallel Mono Modes. Switchable High and Low Pass Filters. Configurable as a Stereo or 2.1 System. Fully Balanced Audio Signal Path. Full Audio and Power Protection with Peak ... iterPower Supply: 220-240Vac- 50/60Hz Output 4 Ohms: 4 x 350W Output 8 Ohms: 4 x 200W Output Bridged: 2 x 700W (Both Channels Bridged) Signal Inputs: 4 x XLR Speaker Outputs: 4 x Speakon Dimensions: 482 x 308 x 44mm Weight: 5Kg.

Quad digital power amplifier in a lightweight 1U rack-mountable format. An energy-efficient switch-mode power section and class-D amplification circuit delivers accurate power-on-demand to four independent speaker outputs. Proprietary cool guide technology provides stable temperature management for dependable operation. Each pair of output channels can be separately parallel switched or bridged as a full or part stereo amplifier configuration. For channel A- there is a switchable 120Hz low-pass filter for use with subwoofers and a channels C and D have a switchable stereo pair of 120Hz high pass filters to effectively focus power in full-range cabs operating as mid-tops in conjunction with sub-woofers. For permanent or mobile installations- the D-series offers an invaluable and flexible problem solver for audio designers and sound engineers.. amplifier-power amplifier-amp-4 channel amplifier
