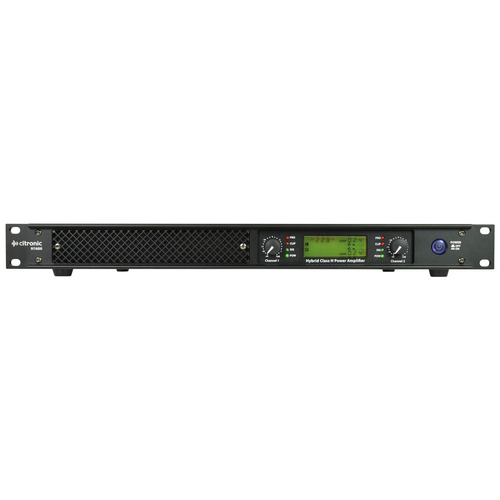

2 x 650 Watt Digital Power Amplifier

Price checked 2026-07-15 · Image: merchant feed

Hybrid Class-H Circuit Design. Digitally Controlled & Monitored Power Section. Switchable 120Hz Low-Pass Crossover. Backlit LCD Status Display. Full Internal Thermal & Overload Protection. Stable ... n to 2 Ohms (4 Ohms bridged)Power Supply: 200-240Vac- 50Hz Power 4 Ohms: 2 x 650W Power 8 Ohms: 2 x 450W Power 2 Ohms: 2 x 800W Power Bridged 8 Ohms: 1 x 1200W Power Bridged 4 Ohms: 1 x 1600W Signal Inputs: XLR Speaker Outputs: Speakon Dimensions: 483 x 44 x 361mm Weight: 6.8Kg.

Lightweight power amplifier in a 19" rack-mountable housing for generating high sound pressure levels in medium to large sound reinforcement systems. H-series amplifiers employ a new hybrid class-H architecture- which combines the streamlined efficiency of a digitally controlled power section design with the power delivery and stability of a professional class-H output stage. Comprehensive internal protection monitors any thermal or overload conditions- automatically mutes at power on/off and provides active inrush limiting. A digital display continually shows the supply voltage- internal temperature and output level. A fully balanced signal path has 3 switchable input sensitivity levels to match different audio sources and the amplifier section can be set to operate in Stereo- Parallel or Bridge modes. A switchable 120Hz low-pass filter can be selected for use with subwoofers- avoiding the need for a separate crossover and saving additional expense and rack space.
