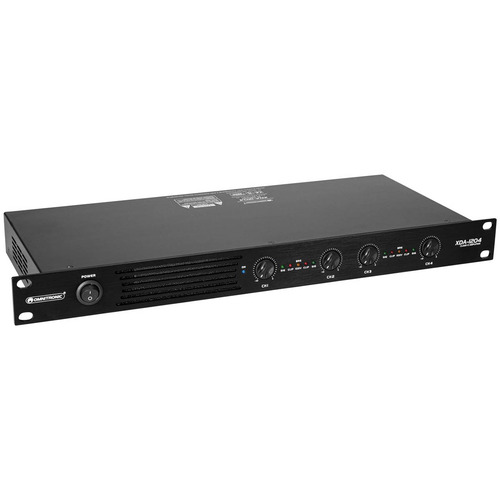

4 Channel PA Amplifier - Stereo Parallel & Bridged 100V Mode. 1200W Total

Price checked 2024-06-04 · Image: merchant feed

3 Operating Modes can be Selected (Stereo- Parallel or Bridged). Extremely Low Weight and Height due to Integrated Switch Mode Power Supply. Level Control per Channel. 1U Rack Mountable. Status LE... or Power- Siganl- Clipping & Bridge ModePower Supply: 230Vac- 50Hz Power 4 Ohms: 4 x 300W Power 8 Ohms: 4 x 180W Power 8 Ohms Bridged: 2 x 600W Power 100V Bridged: 2 x 600W Signal Inputs: XLR Speaker Outputs: Speakon or Terminal Dimensions: 483 x 205 x 44mm Weight: 3.3Kg.

The Omnitronic XDA-1204 is a versatile and feature rich 4 channel Class D amplifier designed for use in PA systems. The amplifier has can be used in 4 ohm- 8 ohm or 100V modes. The output at 4 ohms is 4 x 300W- this means each of the four channels can deliver 300 watts of continuous power to a 4 ohm load. At 8 ohms the output is 4 x 180W similarly- it can deliver 180 watts per channel to an 8 ohm load. The amp can also be bridged at 8 ohms or 100v- When bridged at 8 ohms two channels can be combined to provide 600 watts to an 8 ohm load or the 100V option allows the bridged mode to deliver 2 x 600 watts at 100 volts. The switch mode power supply (SMPS) is known for its efficiency and compact size.
