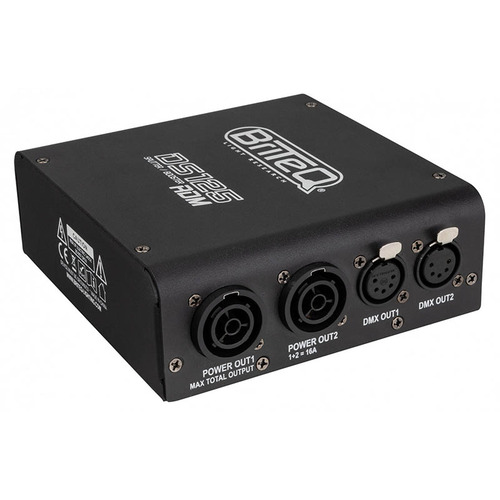

DMX Splitter 2 Way True1 and 5pin DMX

Price checked 2024-10-09 · Image: merchant feed

Divides any DMX Chain into 2 Separate Lines that will not Interfere with each Other. Maximum Security thanks to Complete Galvanic Isolation between all DMX In/Outputs. Booster Function. Compatible... th any Standard Truss Clamp with M10 Thread.

5 Pin DMX & Powercon True1 ConnectionsPower Supply: 100-240Vac Power Consumption: 1W DMX Input: 5 Pin DMX Output: 5 Pin Dimensions: 140 x 145 x 50mm Weight: 750g. This DMX splitter is a compact and reliable solution for dividing a DMX chain into two separate lines- each with DMX 5pin and 16A PowerCON TRUE1-compliant Seetronic© connectors. The splitter provides complete galvanic isolation between all DMX in/outputs- ensuring that any problems on one line will not interfere with the other. The device is 100% RDM compatible for bidirectional DMX communication- and the booster function makes your DMX installation more reliable and flexible to set up. This splitter is specially designed for professionals- with a small size that can be hidden anywhere- very robust construction for rental applications- and the ability to be fitted with any standard truss clamp with M10 thread for easy truss installation. Features power and signal present indicators- as well as an internal power supply that supports 100-240Vac.This DMX splitter features one input with DMX 5pin and DMX pass-through capabilities- as well as a 16A PowerCON TRUE1-compliant Seetronic© connector.
