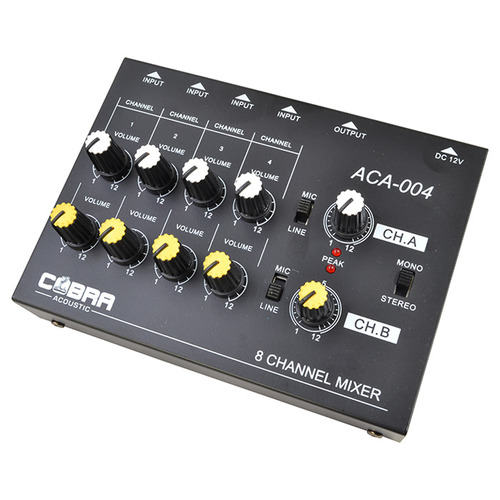

8 Channel Line and Microphone Mixer, 6.3mm Jacks, W/Power Supply

Price checked 2024-11-12 · Image: merchant feed

8 Channel Line Mixer. Individual Level Controls. Very Compact Design. Ultra low Noise Components. Powered Via 9 Volt Power Supply (supplied or a PP3 Battery (not supplied). Mic and Line Level Swit... Mono/Stereo Select SwitchLine Input Connectors: 1/4'' TS Input Impedance: 4.7k Ohms Maximum Input Level: +16dBu Output Connector: 1/4'' TS Output Impedance: Approx.

80 Ohms Maximum Output Level: +16dBu Power Supply: 9v DC 500mA Dimensions: 150mm x 120 x 67mm Weight: 574g. A versatile and professional mixer- suitable for line or microphones levels. The mixer can be used as an 8 mono input and 1 mono output mixer- or two lots of 4 mono inputs with independent outputs- or a 4 stereo input mixer and 1 stereo output. Channels A and B have switches for line level or microphone level- all connections are via ¬" mono jack plugs and each input and output channel have independent volume controls. There are master volume controls for A and B- in mono mode only volume A is used. This mixer can be powered by the supplied power supply or via a PP3 battery(sold separately)- making this a totally portable mixer.
