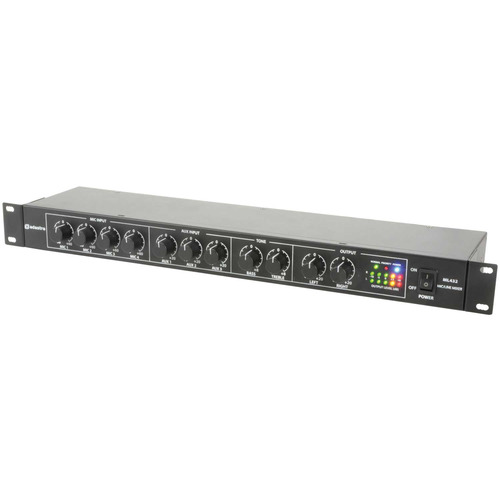

Four Microphone and 3 Line Level Mixer

Price checked 2026-07-15 · Image: merchant feed

4 Balanced Microphone Inputs. +20V Phantom Power On Priority Mic Input. 3 Stereo Aux Line Inputs. Can Tap From An Existing 100V PA System. 24V DC Power OptionPower supply:100-240Vac- 50/60Hz (IEC)... 24Vdc (terminals)\nFuse:T1AL 250V (mains) or F500mA (24Vdc)\nPhantom power:+20Vdc (mic1 XLR input only)\nInputs : mic:4 x balanced 6.3mm jack (+XLR for mic1)\nInputs : aux:3 x L+R RCA\nInputs : priority:Line level (6.3mm jack)- 100V (terminals)\nOutputs:Left + Right 6.3mm jack (unbalanced)\nControls:4 x Mic level- 3 x Aux level- Treble- Bass- L+R output\nRear panel controls:Aux muting level- prior

Rack-mountable 1U mixer with 4 mic inputs and 3 auxiliary inputs. Mic channel 1 has 20V phantom power and adjustable voice-over muting of auxiliary channels. An additional priority input can be connected to a line level input or an external 100V line PA system for emergency paging. Output connections are stereo jack with master bass and treble tone controls. Designed as a master or extension mixer for installed sound systems.. mic and mixer-mic set-microphone set
