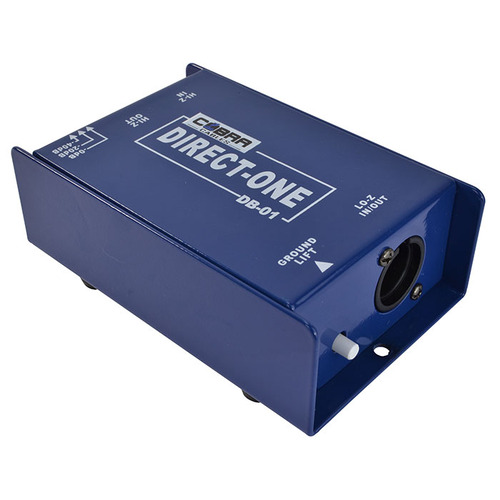

Passive DI Box With XLR & Jack - Ground Lift & Level Pad

Price checked 2025-06-03 · Image: merchant feed

Ground Lift Switch. Wide Frequency Response. Adjustable Attenuation Pad. Suitable For a Wide Range of Sound SourcesInput Connections: Jack Output Connections: XLR Input impedance: :- 50k Ohms ... put impedance: :- 600 Ohms Dimensions: :- 120 x 75 x 45 mm Weight: :- :- 420 g.

Passive DI box suitable for transforming unbalanced input signals- typically from musical instruments- into balanced 600 Ohm outputs. This conversion helps in minimizing unwanted noise and potential ground loop issues- thus making it ideal for long cable runs in a professional audio setup. This passive DI box offers a wide array of features including: A ground lift switch- an invaluable feature that helps in eliminating hum and buzz caused by ground loops. This can be critical when interfacing equipment that has different grounding norms. This dual passive DI box also incorporates an attenuation switch with selectable 0dB- -20dB- and -40dB settings. This adjustable switch allows for precise control over the input signal level- thus preventing potential distortion and maintaining signal integrity across a wide range of input sources.
