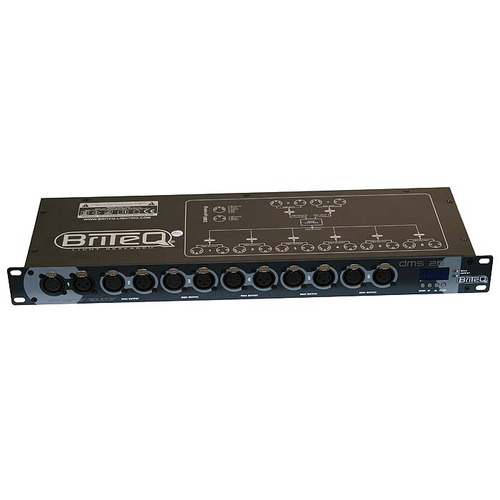

Briteq DMS-26 DMX Splitter - Mix - Isolator

Price checked 2024-10-09 · Image: merchant feed

Sophisticated DMX Isolator. 2 Inputs 6 Outputs. Complete Line Isolation. Timing Feature. Helps With Slow DMX Fittings. Internal DMX BoostMains Supply: 240Vac DMX Output: 3 pin XLR Unit Size: 1U ... ensions: :- 482 x 44 x 150mm Weight: :- :- 2.9kg.

The perfect all-in-one solution to secure your DMX installations: 100% electrical isolation between all in/outputs. Features: 2 DMX inputs + 6 DMX outputs- each equipped with 3pin and 5pin XLR connectors The merger function combines 2 DMX signals in different ways: HTP: the highest value of 2 identical channels from 2 DMX signals will have priority. Backup: when the DMX signal on input A fails- the DMX signal in input B takes over immediately. Merger: DMX signals from 2 different controllers can be combined and sent over 1 cable- you can choose the start address of the second controller The splitter function distributes the DMX signal(s) from the input(s) over 6 identical outputs that are 100% isolated from each other: problems that occur on 1 output will not influence the other outputs The timing of the DMX outputs can be adapted from 23ms to 45ms- increasing compatibility while connecting "slow" DMX devices to "fast" DMX controllers Output behaviour can be selected when suddenly both DMX inputs fail: Null: no DMX signal on the outputs Hold: keep the last DMX values on the outputs. Clear: set the DMX values on all outputs to zero. Easy set-up via 4 digit LED display. dmx splitter-dmx booster-dmx mixer-dmx isolator
